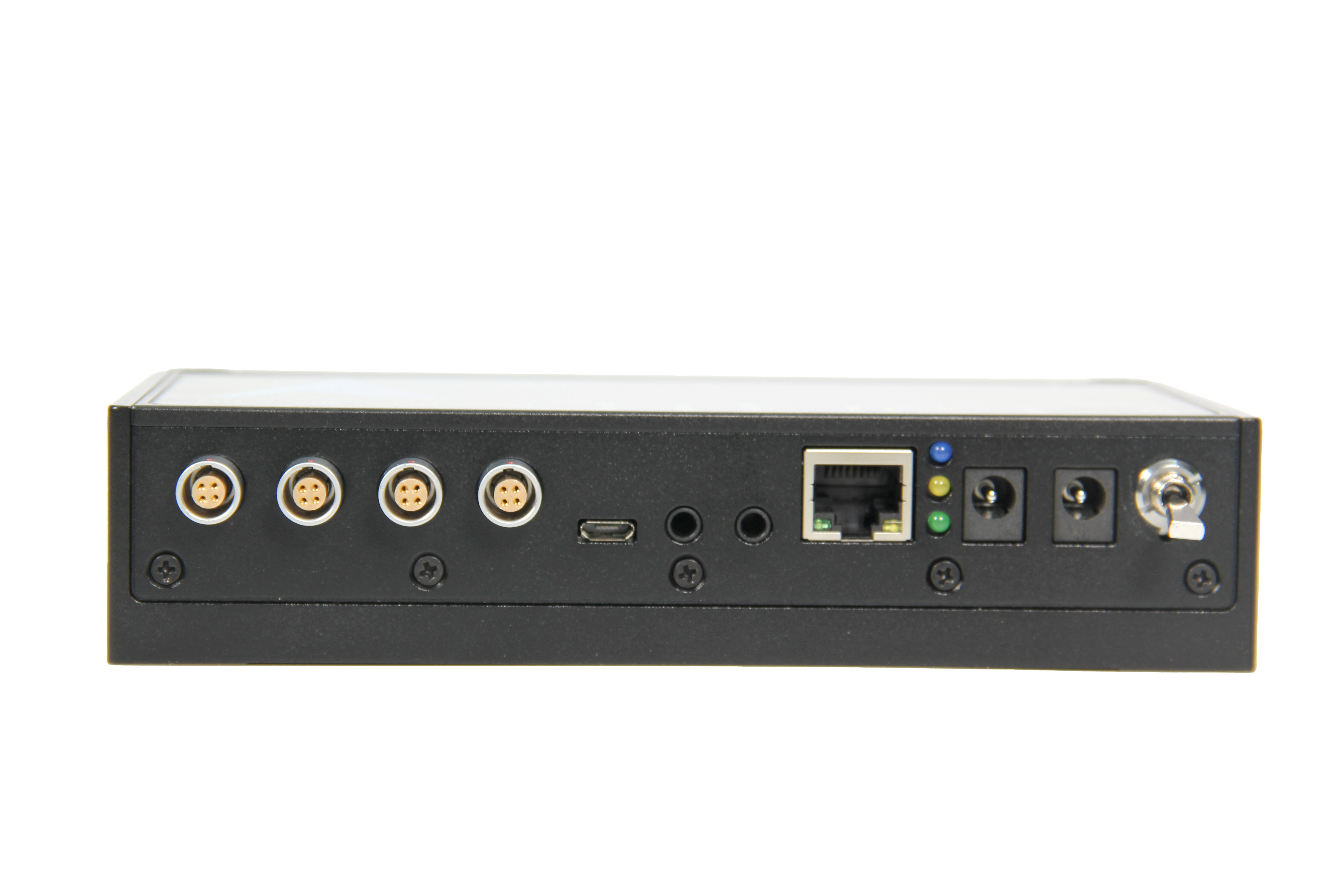

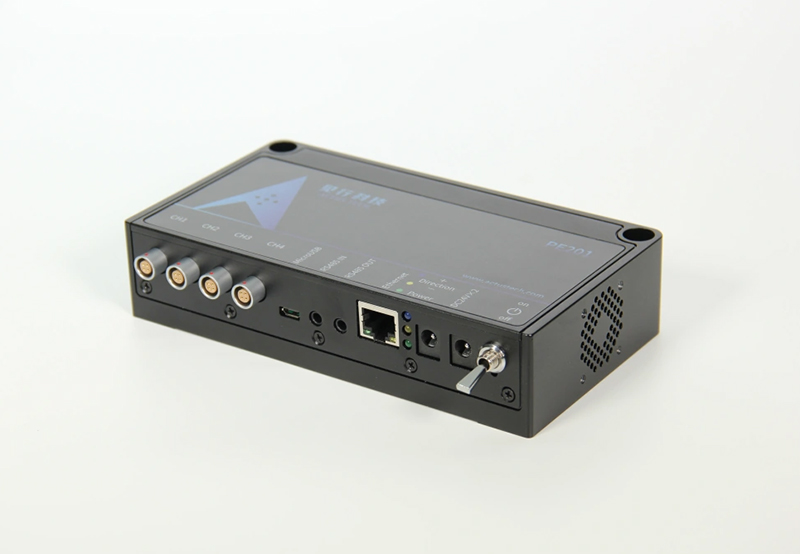

PE201 Piezo Screw Driver

Used for open-loop control of piezo screws, supporting up to four axes

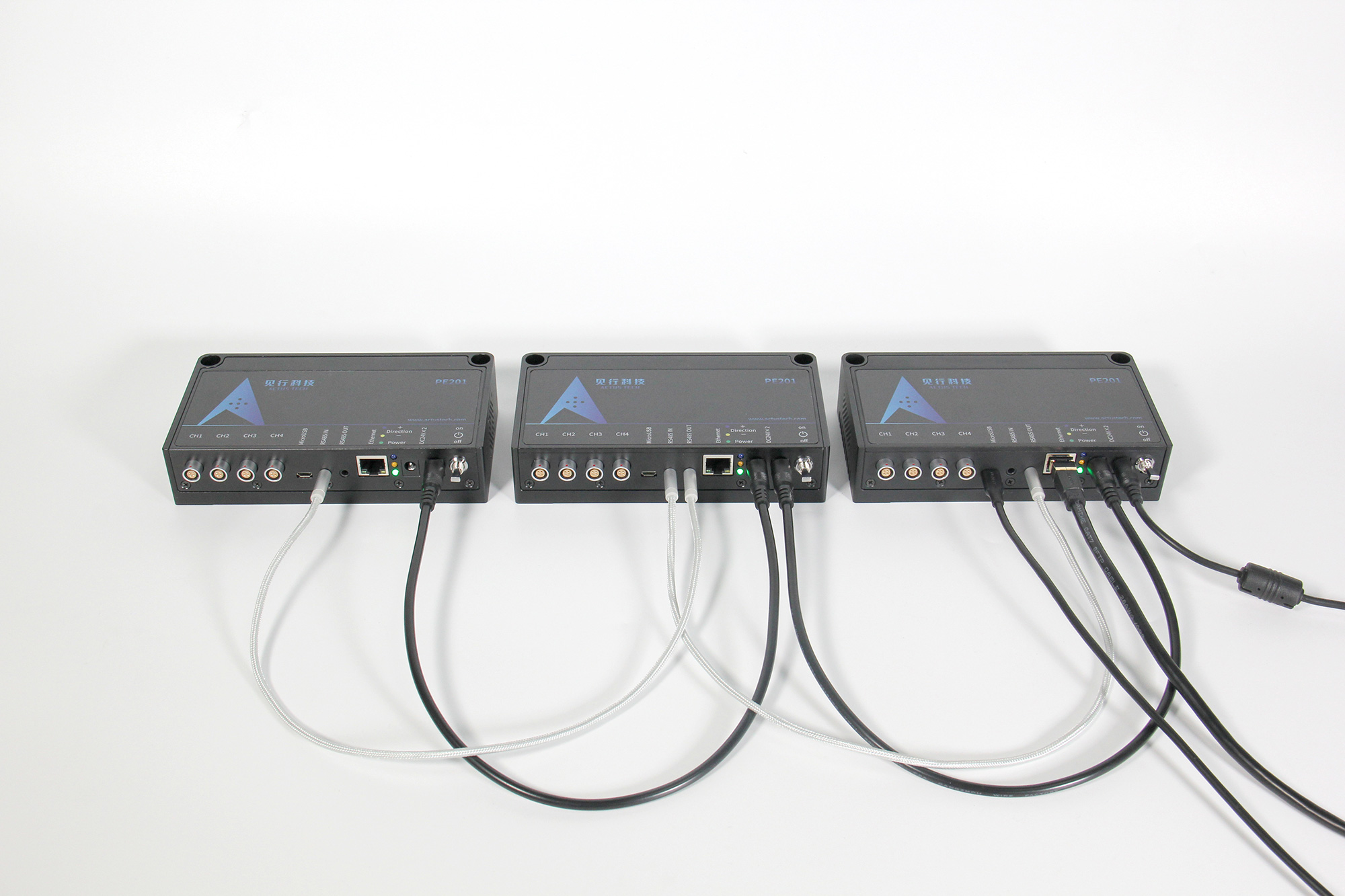

Supports cascading of multiple controllers

Triangular wave drive with a driving voltage ranging from 0 to 120V

The driving frequency is 2kHz (adjustable from 30Hz to 3kHz)

It supports a dedicated command set to enable more flexible operation of the piezoelectric inertial motor

Product Overview
Product Specifications
Download materials

Product Overview

• Used for driving piezoelectric screws

• Supports time-division driving of 4 piezoelectric screws via channel switching

•User-friendly supporting control software developed in conjunction

Product Features

User-friendly control software

The control software offers an excellent user experience with quick onboarding. It provides both coarse and fine adjustment modes, displays the controller temperature in real time, and offers overheat protection.

Dedicated command set

In addition to being controlled via dedicated software, the piezoelectric inertial motor can also be operated more flexibly using a dedicated command set (see the product manual for the command set tools).

Linear micro-displacement control function

In addition to high-speed, large-range driving of the piezo screw in full-step increments, it also supports linear micro-adjustment control for steps smaller than the full step, enabling more precise operation. (Note: This driving mode does not support power-off self-locking and is only available for single-axis control.)
