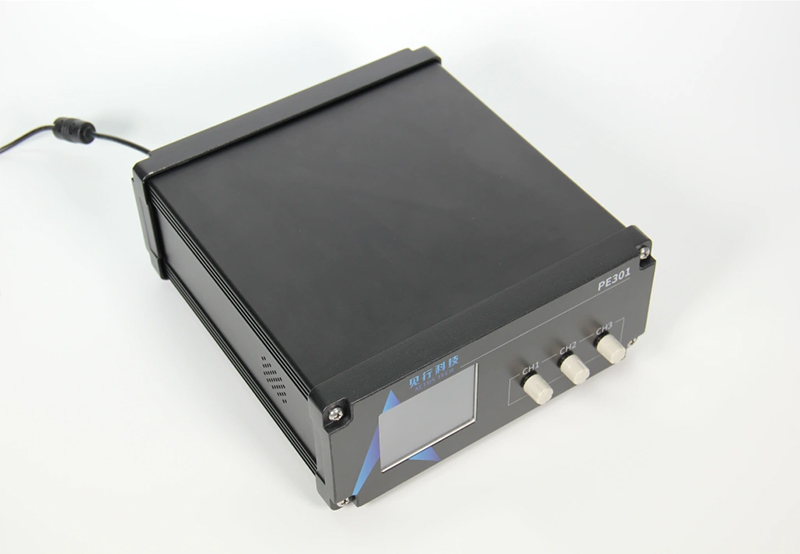

PE301 Piezo Actuator Driver

Used for open-loop control of piezoelectric actuators, supporting up to three channels.

The controller can identify the actuator via the ID chip.

It supports a dedicated command set, which makes the application functions and scenarios of the actuator more diversified.

The controller displays the output voltage value in real time, supports insertion and withdrawal detection, and is equipped with output short-circuit protection.

Three knobs are used to adjust three channels of driving voltage, with an adjustment accuracy of 1mV.

Product Overview
Product Specifications
Download materials

Product Overview

• Supports simultaneous driving of up to three channels

• Supports analog 0~10V input and digital RS232 input control

• A user-friendly supporting control software developed in conjunction

• Features low noise and high stability

Product Features

Supports analog and digital control

Supports analog 0–10V input and digital RS232 input control, with an output voltage range of -20V to 120V.

Supports ID chip function

The ID chip inside the actuator contains the actuator model and parameters. The controller identifies the actuator through the ID chip.

User-friendly manual adjustment function

Three knobs adjust the three driving voltages. Press the knob to change the adjustment precision, and rotate the knob to adjust the voltage value, with an adjustment accuracy of up to 1 mV.
