Anhui Actus Technology PZ20x～21x Piezoelectric Actuator

PZ20x~21x Piezoelectric Actuator

Preloaded piezoelectric direct-drive structure， Multiple mounting options

Enables high-precision displacement control to meet high-accuracy positioning requirements.

Supports millisecond-level dynamic response with no delay in rapid motion changes.

Offers multiple mounting methods for flexible adaptation to different equipment and scenario needs.

Equipped with user-friendly control software, featuring an intuitive interface, convenient operation, high efficiency and stability.

Product Overview
Product Specifications
Download materials

Product Overview

• The PZ20x~21x piezoelectric actuator features a preloaded piezoelectric direct-drive structure.

• It is compact in design, making it suitable for integration into devices with limited installation space.

• It supports customization of various motion strokes, with the stroke ranging from 20 μm to 100 μm.

• Additionally it boasts such advantages as large output force, high stiffness and fast response speed.

Application field

Optical Alignment

Automation

Optical Alignment

Automation

Product Features

Preloaded direct-drive structure

The actuator uses internal springs to provide preload force to the piezoelectric stack, enabling direct drive without any amplification mechanism. This design offers high output force, high stiffness, and fast response speed.

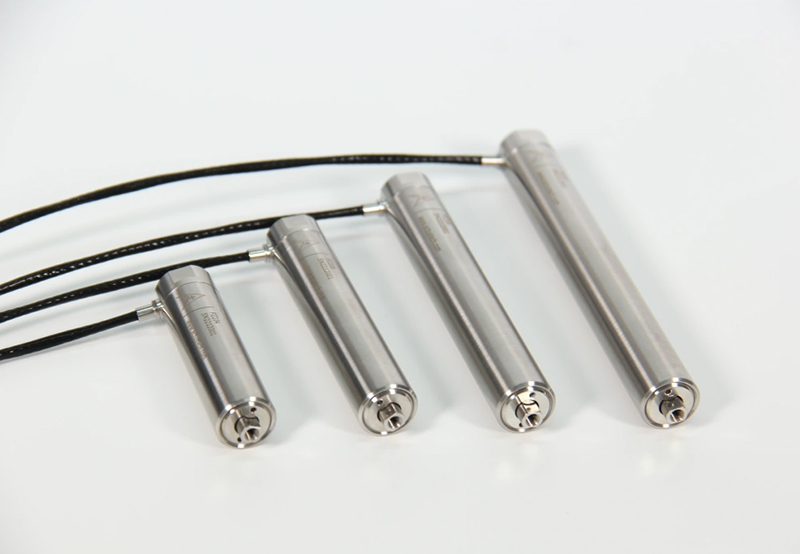

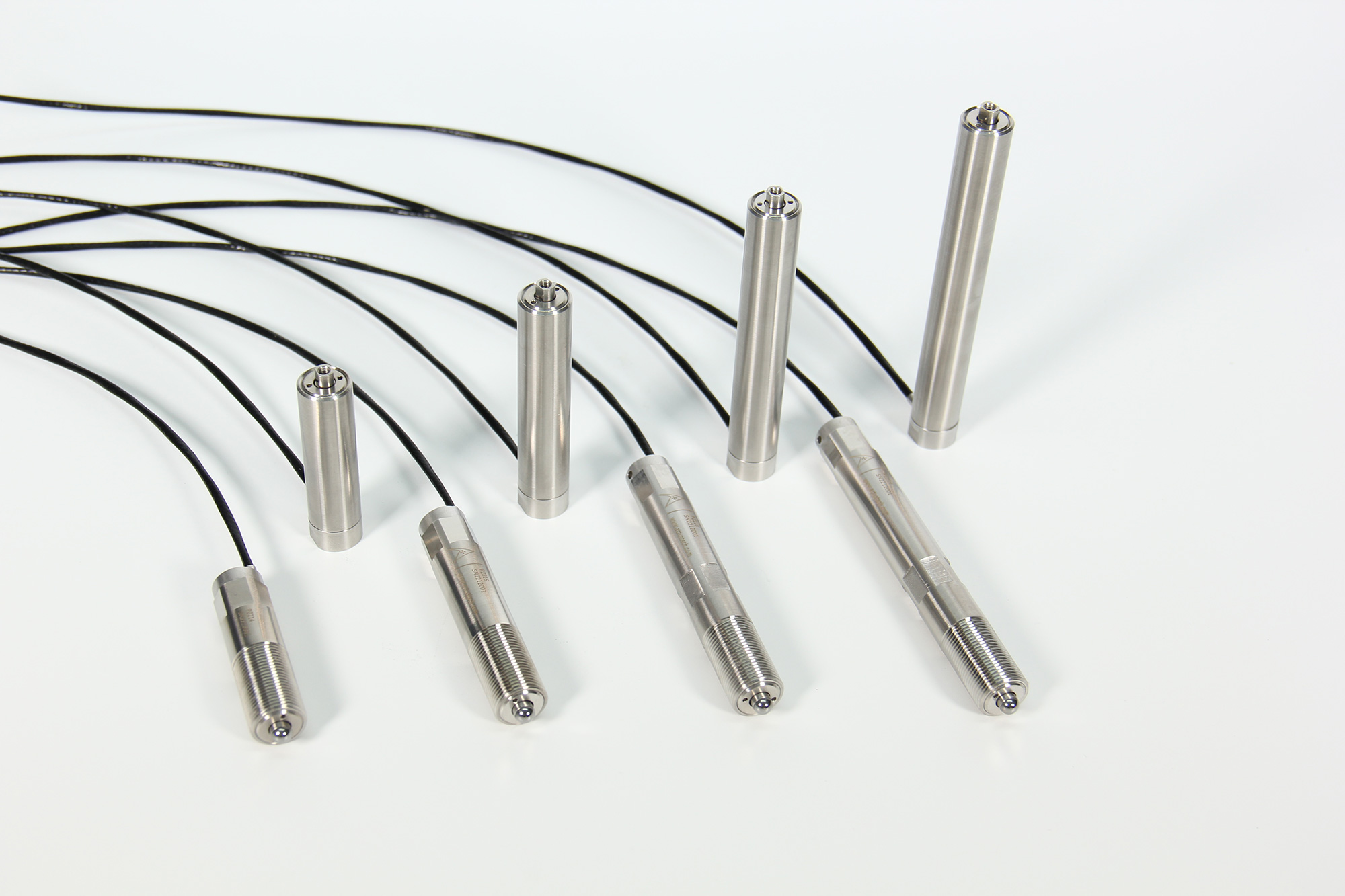

Wide variety of models available

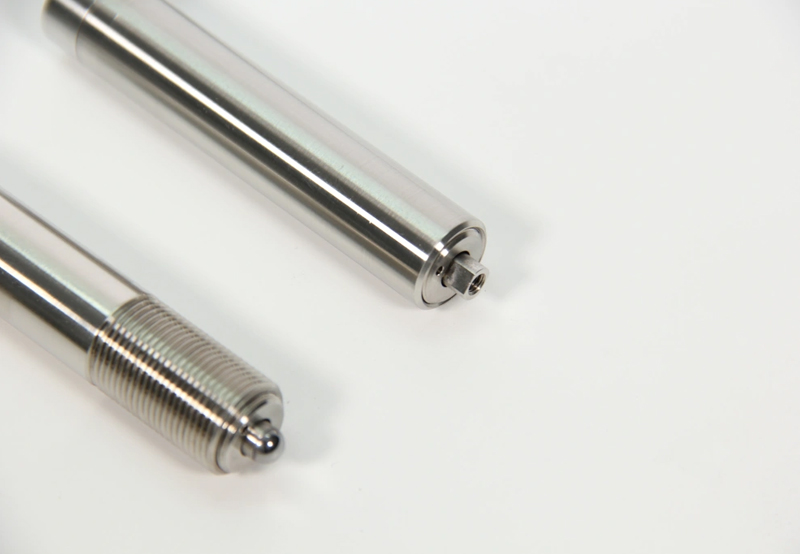

The PZ20x series features a cylindrical housing with rear-end fixation, while the PZ21x series has a threaded housing for nut fixation. Each series offers multiple stroke options.

Supports ID chip function

The ID chip inside the actuator contains the actuator model and parameters. The controller identifies the actuator through the ID chip.

PZ20x~21x Piezoelectric Actuator
