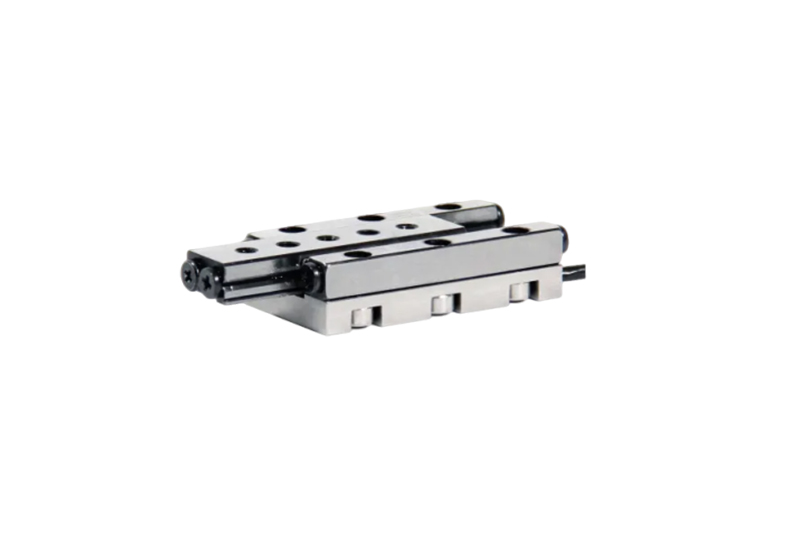

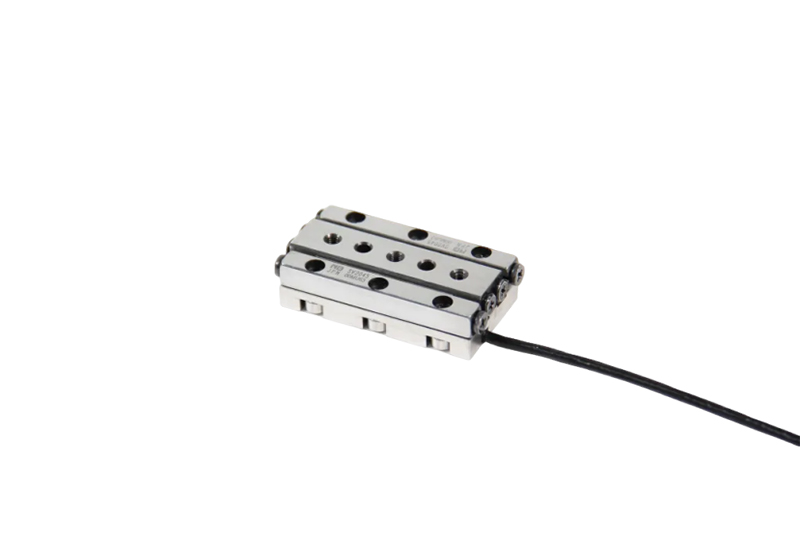

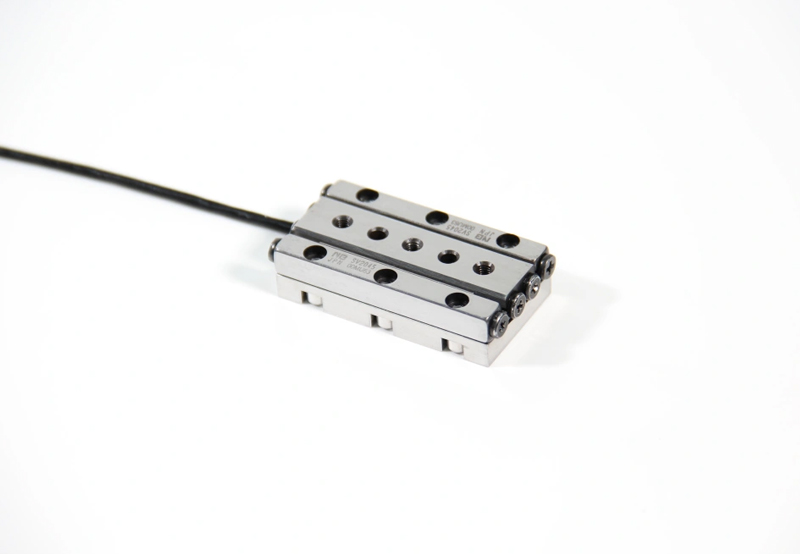

PL151 Piezoelectric Inertial Linear Stage Series

Piezoelectric Inertial Motor, Long Stroke, Precise Position Control with Small Step Size

Closed-loop minimum step size up to 5nm for precise positioning

Bidirectional repeatability better than ±120nm with high motion consistency

Supports 2D and 3D combined expansion, and multi-axis coordination enables high dynamic scanning

High vacuum compatible

Product Overview
Product Specifications
Download materials

Product Overview

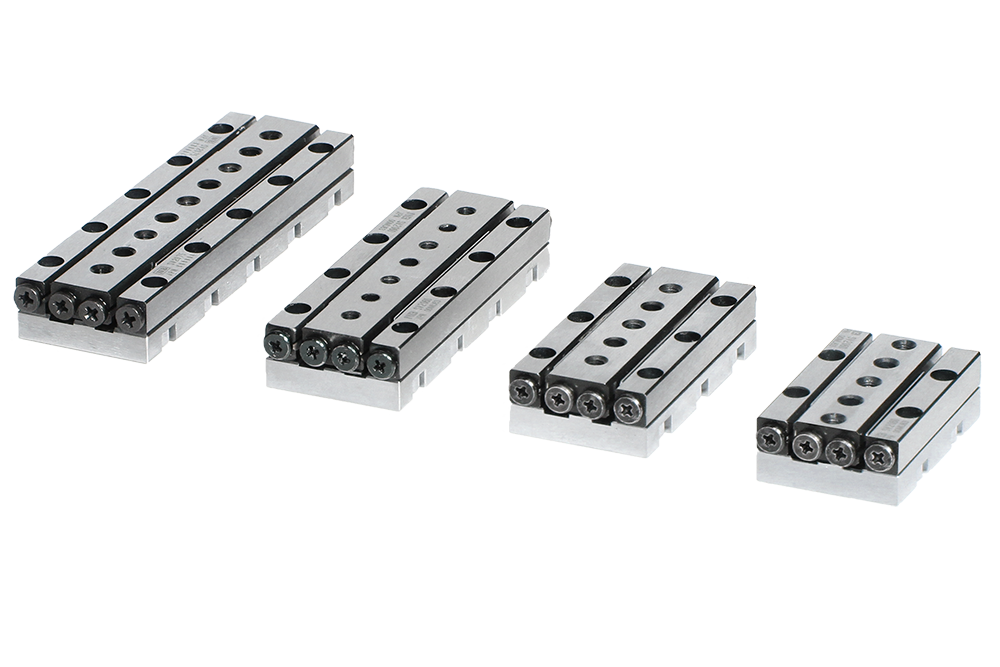

• Stroke options: 16/36/50mm, customization available

• Inertial drive and grating closed-loop, suitable for high-precision linear positioning applications

• Compact structure with width of only 24mm and height of 12mm

• Customized user-friendly control software, featuring real-time displacement visualization and compatibility with diverse waveform editing

Application field

Microscopy Imaging

Automation

Sample Positioning

Precision Machinery

Microscopy Imaging

Automation

Sample Positioning

Precision Machinery

Product Features

Piezoelectric inertial drive + linear fine-adjustment control

Driven by the inertial principle, it accumulates the deformation of the piezoelectric ceramic to achieve larger displacements. Fine control of the driving voltage enables nanometer-scale微小 displacements.

High load capacity

When the piezo stage is horizontally positioned, it supports a maximum normal load of2kg and a maximum axial load of 0.2 kg.

Can be combined into a two-dimensional platform

By stacking two units together, a two-dimensional platform for scanning can be achieved.

Static Zero Power Consumption

The stage features a power-off self-locking function. When the stage is stationary, no energy is consumed to maintain its position, allowing the controller to be powered off.

User-friendly control software

The control software offers an excellent user experience with quick onboarding. It supports the upload, editing, and saving of user-defined waveforms. The waveform display window shows real-time displacement information from the grating sensor, enhancing visualization of stage movement.
