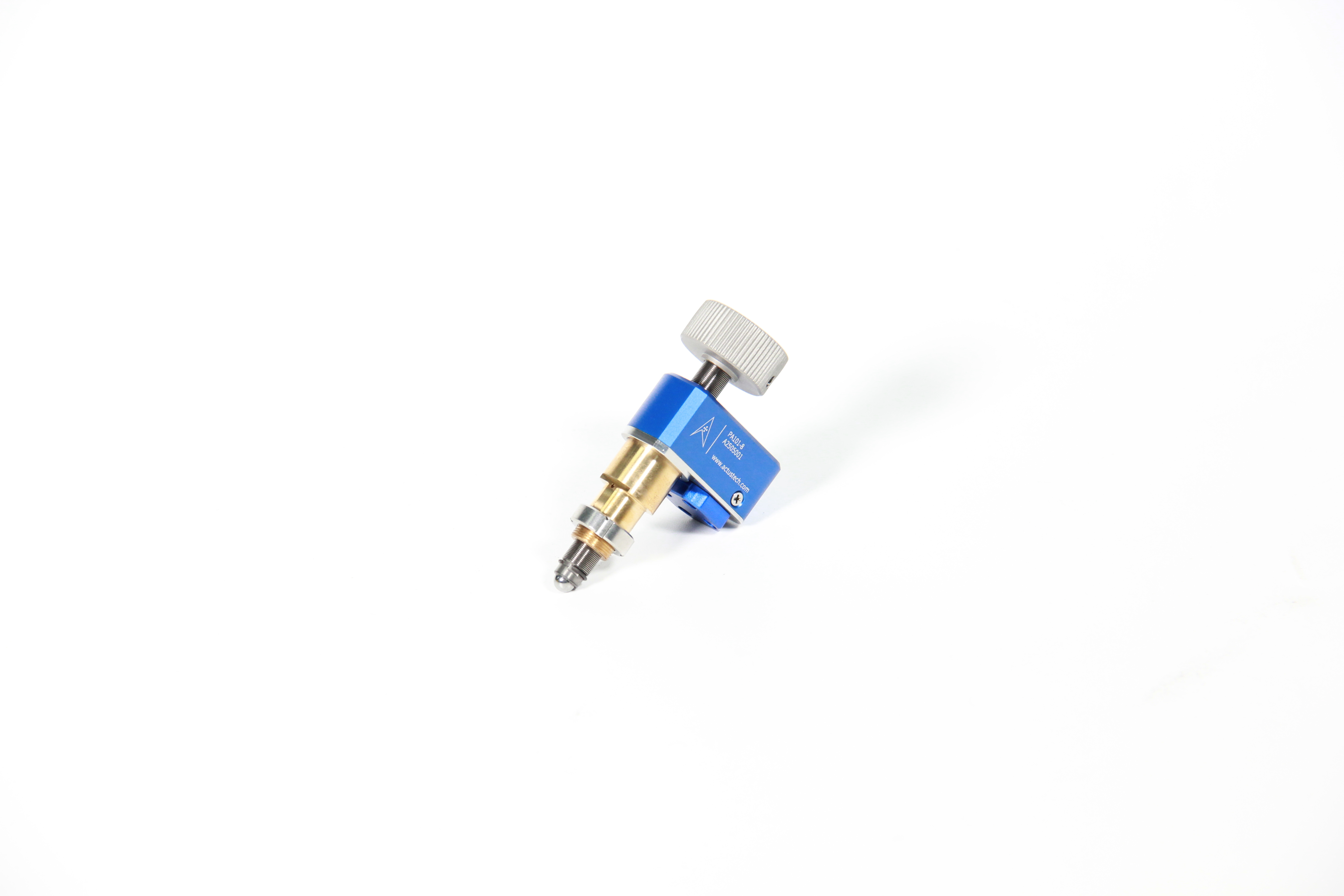

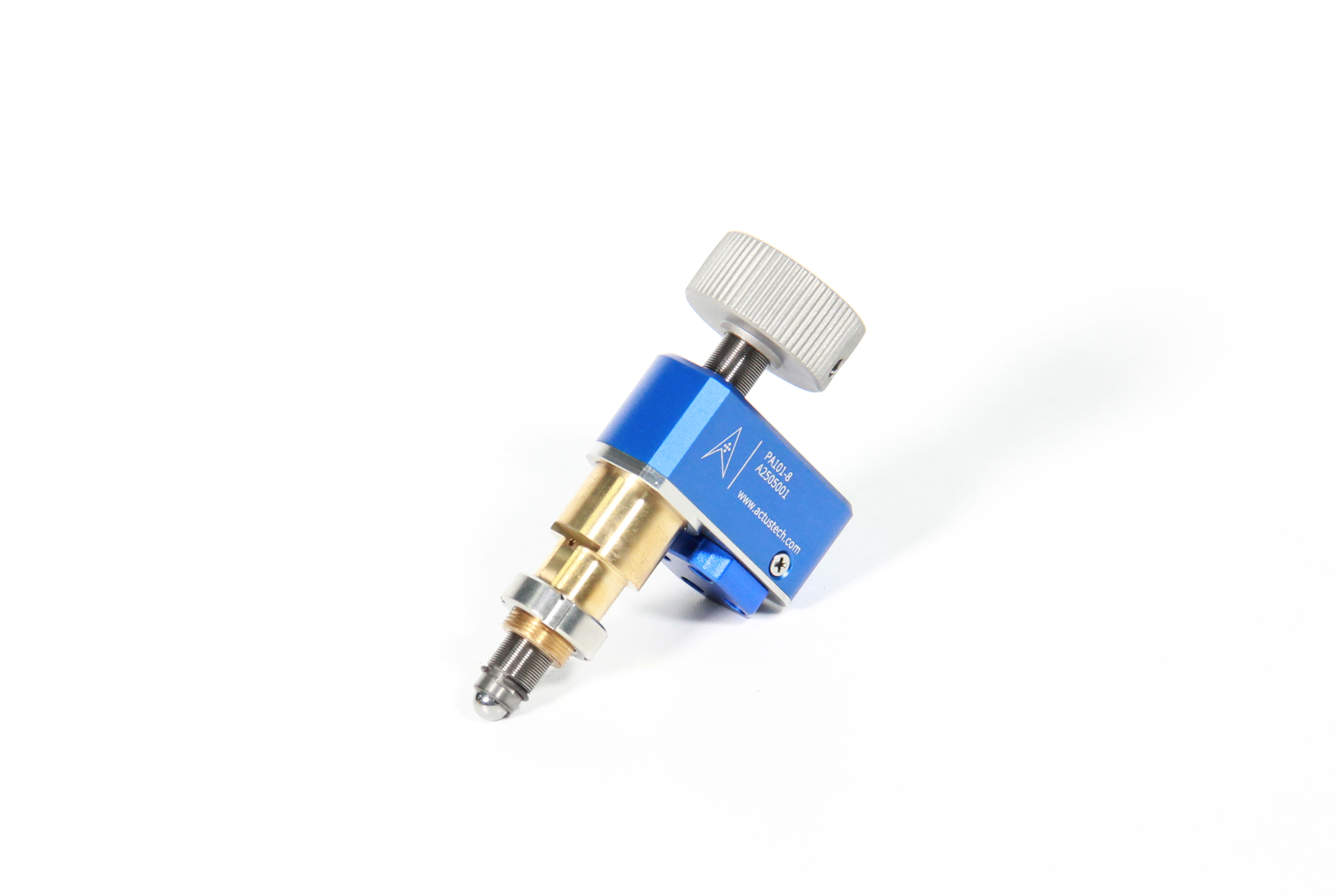

PA101-x Piezoelectric Screw

Piezoelectric inertial drive Thread-guided mechanism Multiple stroke options available

High load capacity, supporting an axial load of 50N.

Thread-driven inertial motor with power-off self-locking function.

High adjustment precision: the screw advances or retracts by approximately 20nm per inertial drive cycle.

Equipped with user-friendly control software, featuring an intuitive interface, convenient operation, high efficiency and stability.

Product Overview
Product Specifications
Download materials

Product Overview

• High load-carrying capacity, self-locking with zero power consumption when powered off, stable and energy-saving.

• Compact overall dimensions, suitable for integration into equipment with limited space.

• Standard strokes are 8mm, 13mm and 26mm, supporting different motion strokes.

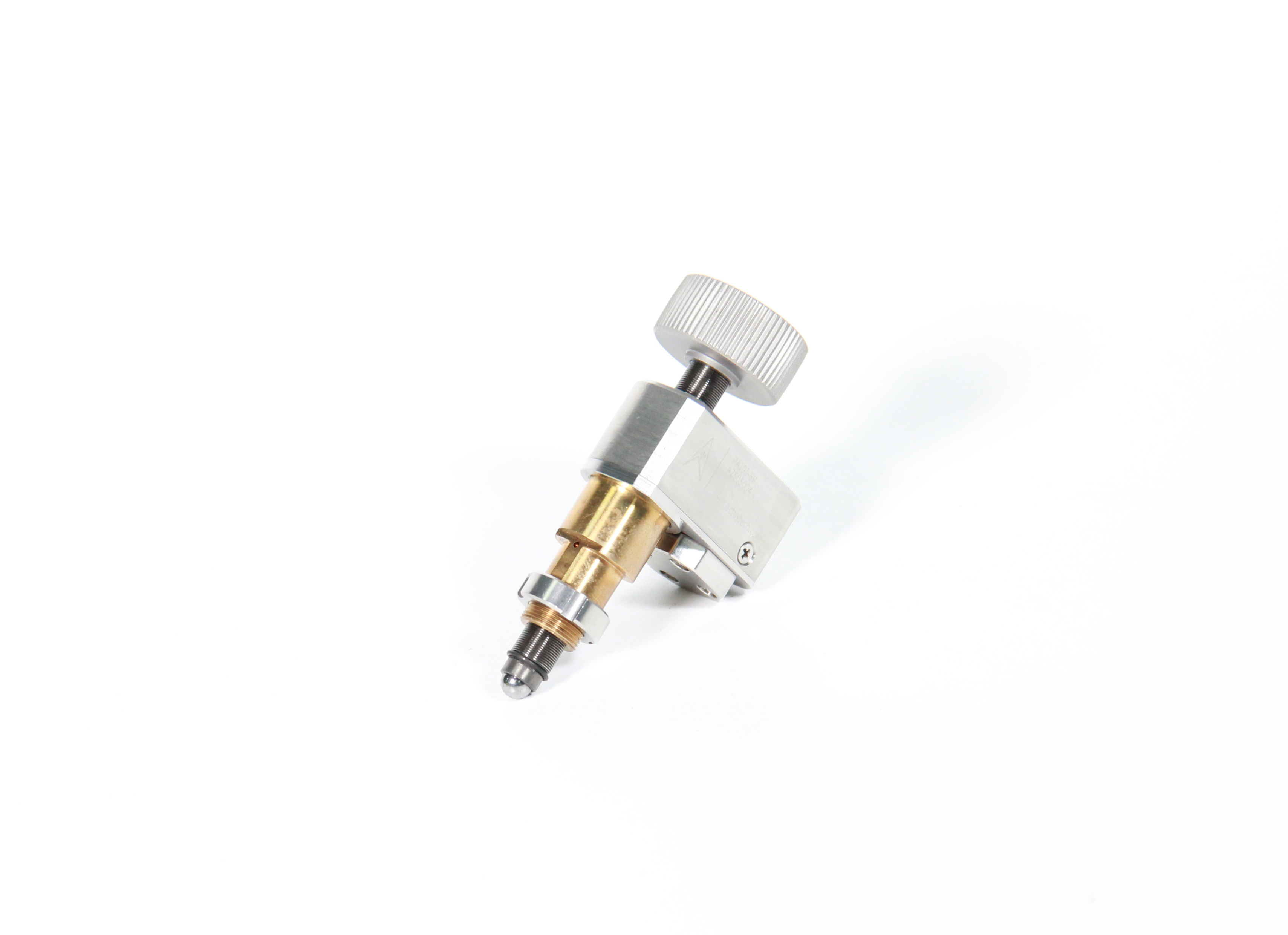

• Customization options include vacuum-compatible versions and closed-loop versions.

Application field

Scientific Research

Optical Alignment

Automation

Scientific Research

Optical Alignment

Automation

Product Features

Thread-driven inertial motor

Using the inertial drive principle, the excitation voltage of the piezoelectric stack is a sawtooth wave, causing the screw to rotate in micro-steps at a frequency of 2 kHz. Due to the self-locking characteristic of the screw, the piezo screw provides a strong holding force and consumes no energy when stationary.

High adjustment precision

The screw advances or retracts by approximately 20 nm per inertial drive cycle. At a driving frequency of 2 kHz, the speed reaches approximately 2.4 mm/min.

Compact, modular design

Compact external dimensions; for different stroke models, only the screw length needs to be adjusted, making customization convenient.
