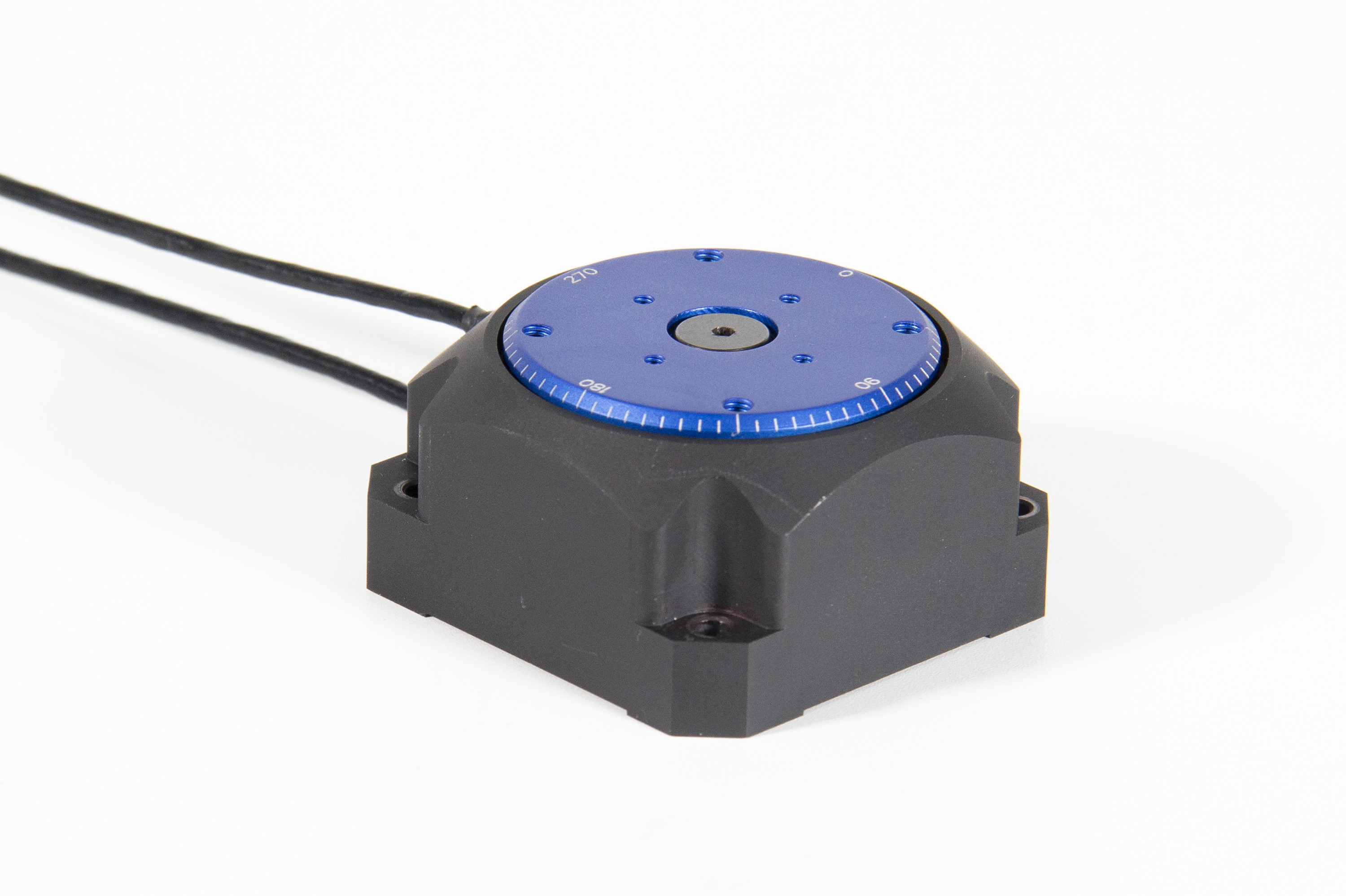

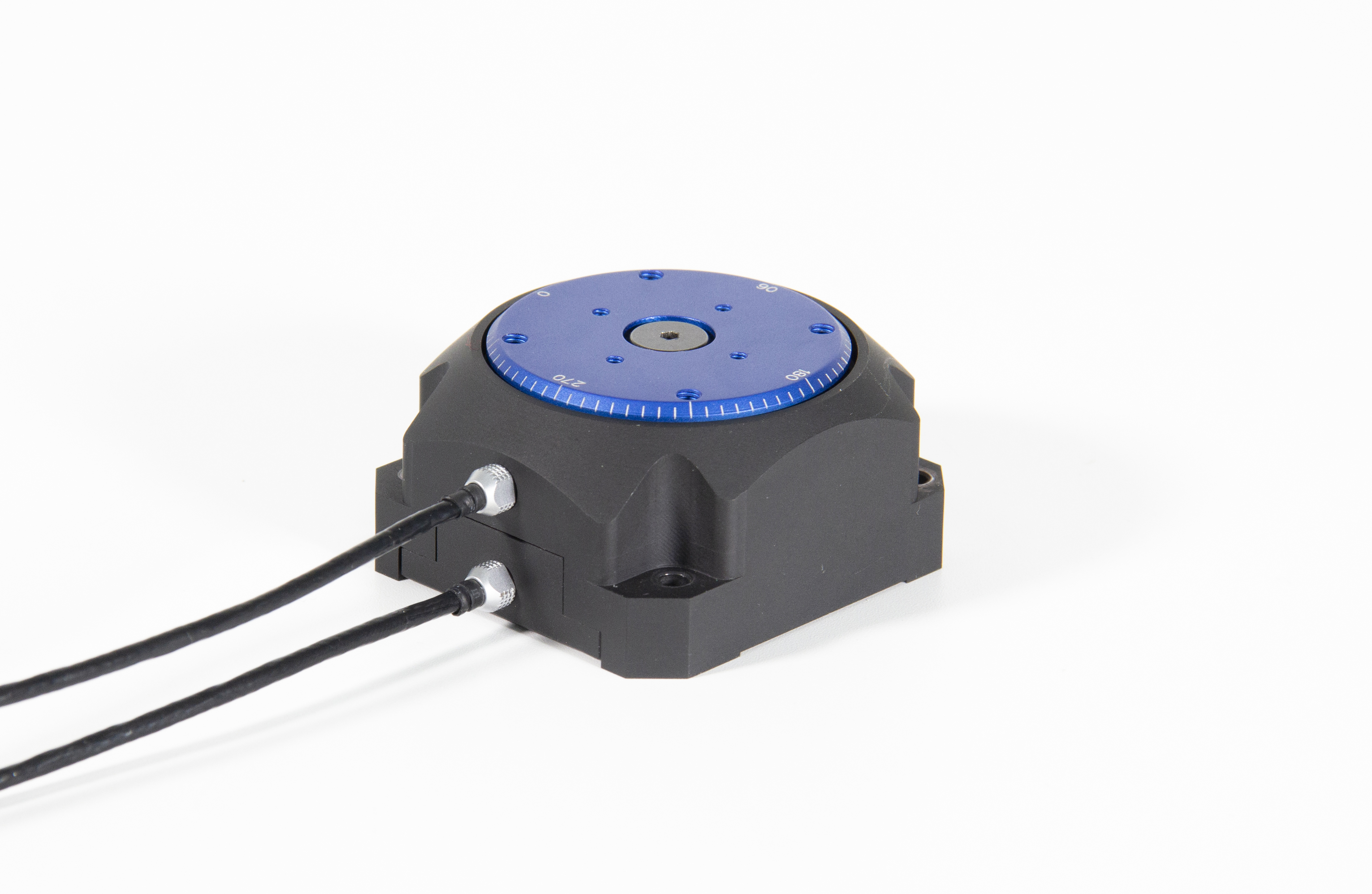

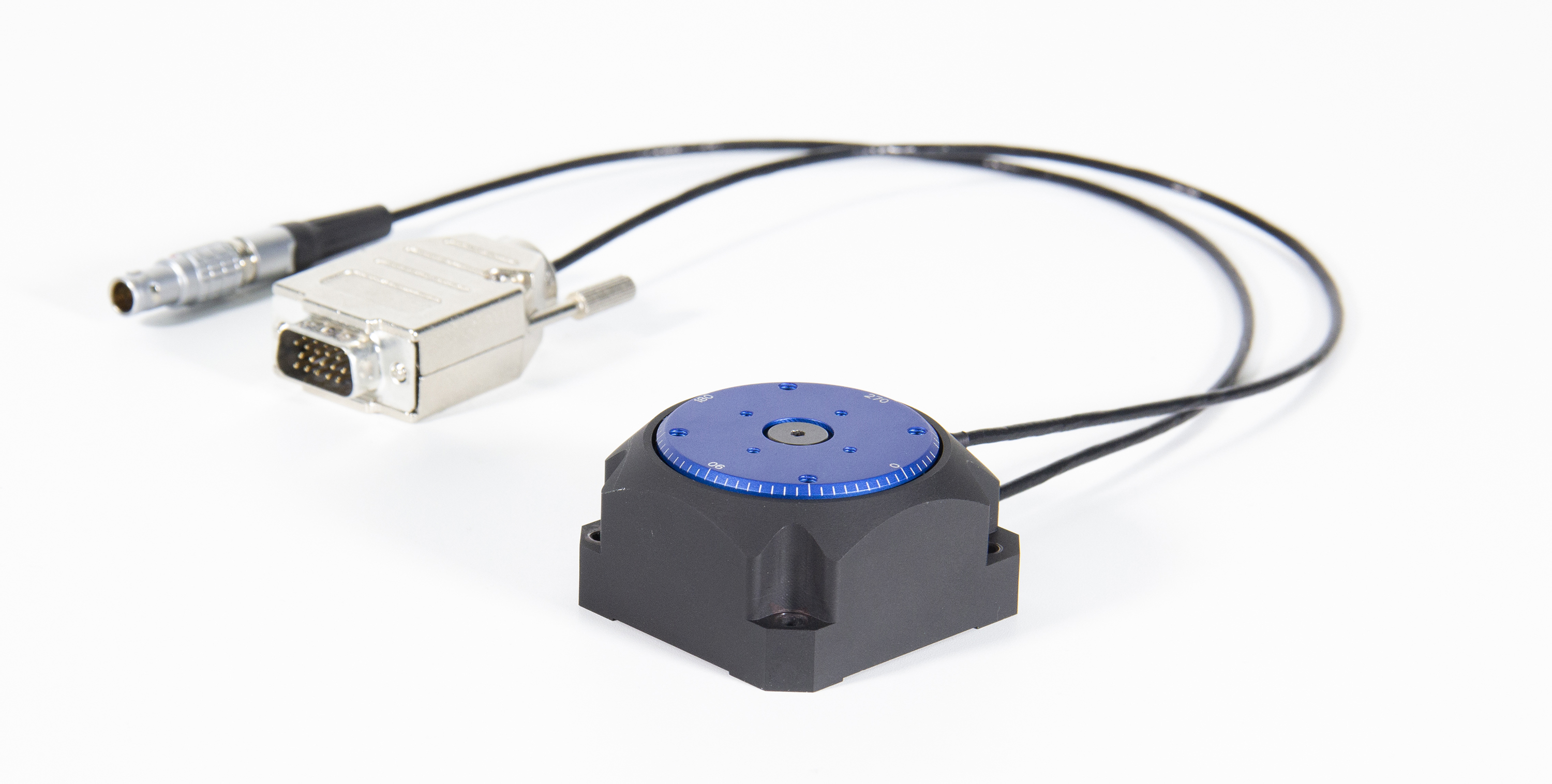

PR210-42 Piezoelectric Ultrasonic Rotation Stage

High Precision and High Stability

Enables Rapid Start and Stop

Supports Control via Dedicated Software and Command Set

Power-off Self-locking

Product Overview
Product Specifications
Download materials

Product Overview

• Rotation angle > 360°

• High rotation speed with maximum no-load speed of 540°/s

• High load capacity, with normal load up to 10kg

• Ultrasonic drive and grating closed-loop, suitable for high-speed and high-precision rotational positioning applications

Product Features

Piezoelectric ultrasonic drive

The piezoelectric ultrasonic rotation stage is driven by the ultrasonic principle, enabling rapid start and stop of the rotation stage.

grating closed-loop control

The piezoelectric rotation stage features a built-in high-precision grating sensor, enabling high-accuracy closed-loop control. The bidirectional repeatability of the rotation stage is less than 120 μrad.

High load capacity

The piezoelectric rotation stage delivers a maximum driving torque of 0.08 Nm and supports a normal load of up to 10 kg.

Static Zero Power Consumption

The rotation stage features a power-off self-locking function. When the stage is stationary, no energy is consumed to maintain its position, allowing the controller to be powered off.

User-friendly control software

The control software offers an excellent user experience with quick onboarding.

The software provides both open-loop and closed-loop control modes. In closed-loop mode, it supports closed-loop single-step motion, closed-loop equal-step motion, and closed-loop angle-setting motion.

The angle display window shows real-time angular displacement information of the rotation stage, enhancing visualization of the rotary table's movement.
